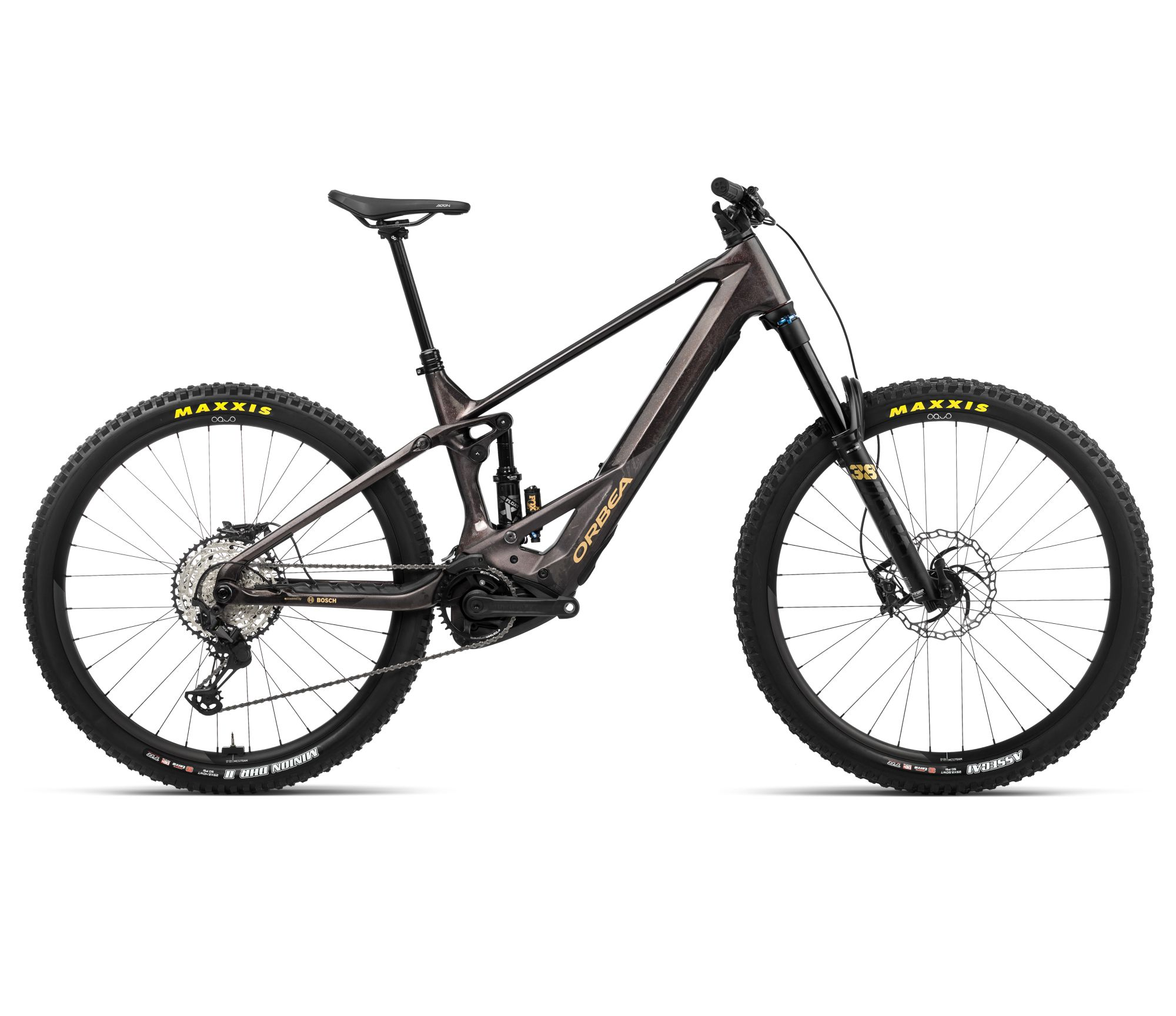

Orbea Wild M10

Orbea Wild M10
  • Color: Cosmic Carbon View
  • Color: Halo Silver-Tanzanite Carbon View
$8,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

BEYOND POWER

We could tell you how Wild has the most powerful motor or battery capacity on the market. But we aren't going to. Wild takes us beyond such trivialities and into a world beyond power, where the ride is paramount, where the trails are endless and full of flow. Leave heavy, numb e-bikes behind and free your Wild.

MAXIMUM PERFORMANCE. MAXIMUM FUN
Wild tames the wildest trails but always feels alive, energetic, and involved rather than the detached, numb ride of many e-bikes. Wild is first and foremost a fantastic enduro bike, and the frame rigidity, lighter weight, supportive suspension, and e-evolved geometry reflect that, putting you in complete control of the ride.

PERFORMANCE THROUGH SIMPLICITY
Performance through simplicity means removing anything unnecessary and adding only what directly enhances the ride. Thanks to technologies that prioritize simplicity, such as SBS and the Clean Cockpit, Wilds´s frame is strikingly svelte and simple, with clean lines which means you could almost overlook that this is an ebike.

LIGHT. LIGHTER. LIGHTEST.
The best materials, the cleverest designs, and key technologies such as our SBS design mean that Wild is one of the lightest full-power ebikes. All things being equal lighter means higher performance, giving more range and better handling.

NO LIMITS, JUST GO WILD
Fully powered and ready to rumble, Wild is all about maximum fun on the craziest climbs and wildest descents. The combination of the latest Bosch motors and a 750Wh battery offers incredible range and power and on the descents, Wild handles less like a ponderous e-bike and more like your favorite enduro rig.

WILD FOR COMPETITION
During our development process, bikes are pushed to the limit to ensure maximum performance and reliability. The intense competition of the EWS-E, where Orbea took the overall team win, was key to building the highest performance Wild possible.

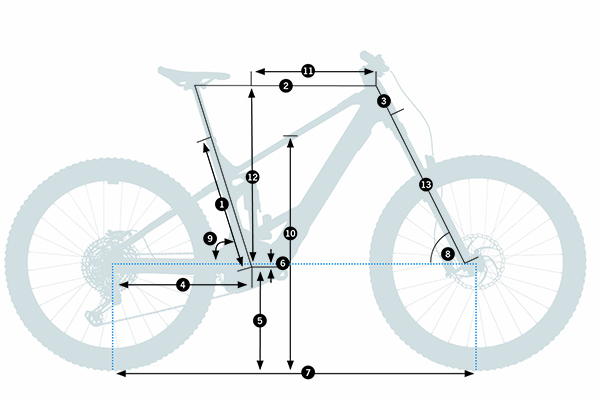

Geometry
Sizes:
SMLXL
1 - SEAT TUBE (C-T) 415 415 435 460
2 - TOP TUBE (EFF) 573 595 622 649
3 - HEAD TUBE 110 120 130 140
4 - CHAINSTAY 448 448 448 448
5 - BB HEIGHT 353 353 353 353
6 - BB DROP 25 25 25 25
7 - WHEELBASE 1223 1247 1277 1306
8 - HEAD ANGLE 64º 64º 64º 64º
9 - SEAT ANGLE 77.5º 77.5º 77.5º 77.5º
10 - STANDOVER 700 700 700 700
11 - REACH 435 455 480 505
12 - STACK 621 630 639 648
13 - FORK LENGTH 575 575 575 575
14 - RAKE 44 44 44 44
Sizes:
FRAME SIZERIDER HEIGHT (cm)RIDER HEIGHT (in)
SMALL150-175 59.1"-68.9"
MEDIUM160-185 63.0"-72.8"
LARGE170-195 66.9"-76.8"
X-LARGE180-205 70.9"-80.7"

Specs

Frame Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Fork Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm
Wheels Oquo Mountain Control MC32TEAM POWER
Tires Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
Crankset e*thirteen Plus Alloy
Chainrings e*thirteen e*spec Direct Mount 34T Boost
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano XT M8120 Hydraulic Disc
Handlebars OC Mountain Control MC20 Alu SL, Rise20, Width 800
Tape/Grips OC Lock On
Stem OC Mountain Control MC20, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Saddle Fizik Aidon 208x145mm manganese rail
Pedals Sold separately
Accessories & Extras OC Computer Mount CM-05, Garmin/Sigma
Motor BOSCH Performance Line CX BDU3741
Battery BOSCH Powertube 750Wh Horizontal BBP3775
Controller/Display BOSCH System Controller BCR3100
Charger Bosch Charger 4A (110V) BPC3410

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Halo Silver-Tanzanite Carbon View / Small / 29-inch 8434446535772 R64503V4
Halo Silver-Tanzanite Carbon View / Medium / 29-inch 8434446535802 R64505V4
Halo Silver-Tanzanite Carbon View / Large / 29-inch 8434446535833 R64507V4 210000182198
Halo Silver-Tanzanite Carbon View / X-Large / 29-inch 8434446535864 R64509V4
Cosmic Carbon View / Small / 29-inch 8434446535765 R64503V3
Cosmic Carbon View / Medium / 29-inch 8434446535796 R64505V3 210000182021
Cosmic Carbon View / Large / 29-inch 8434446535826 R64507V3
Cosmic Carbon View / X-Large / 29-inch 8434446535857 R64509V3 210000182135
